Root Cause Failure Analysis: From Evidence to PreventionRoot Cause Failure Analysis 根本原因故障分析：从故障证据到预防复发

Root cause failure analysis: the quick answer根本原因故障分析：快速回答

What root cause failure analysis does—and does not do根本原因故障分析能做什么、不能做什么

The phrase is most useful in reliability, manufacturing, maintenance, quality, and engineering investigations where a component, asset, process, or system no longer performs its intended function. The investigation moves through three linked questions: the failure mode describes the observed loss of function; the failure mechanism explains the physical, chemical, electrical, software, or process phenomenon that produced it; and the causal system explains why the mechanism was created, missed, or tolerated.

该术语主要用于可靠性、制造、维护、质量与工程调查，适用于部件、资产、流程或系统无法实现预期功能的情况。调查依次回答三个关联问题：失效模式描述观察到的功能丧失；失效机制解释导致它的物理、化学、电气、软件或流程现象；因果系统解释该机制为何被制造出来、未被发现或被长期容忍。

RCFA is not a meeting that ends when a plausible cause is named. It is not automatically a laboratory test, a 5 Whys worksheet, a blame assignment, or a guarantee that recurrence is impossible. Specialized examination may be required for fracture, corrosion, contamination, electronics, fire, or safety-critical events. When evidence has legal, regulatory, or safety implications, use qualified specialists and the organization’s chain-of-custody and reporting procedures.

RCFA 不是在说出一个看似合理原因后就结束的会议，也不等同于实验室检测、五问法表格、责任归咎或“绝不复发”的保证。断裂、腐蚀、污染、电子故障、火灾或安全关键事件可能需要专门检验；当证据涉及法律、监管或安全后果时，应使用合格专家以及组织规定的证据保全与报告流程。

Prepare the evidence before disassembly or repair拆解或维修前先准备证据

Start with a factual problem statement: asset and function, expected state, observed deviation, first known occurrence, operating state, consequence, and investigation boundary. Photograph the as-found condition. Label and isolate failed parts, mating parts, fluids, filters, debris, and relevant samples. Preserve control logic, alarms, high-resolution trends, work orders, operator notes, configuration, calibration, installation history, environmental conditions, and recent changes. Record timestamps, units, time zones, collection method, source, and custodian.

从事实性问题陈述开始：资产与功能、预期状态、观察偏差、首次已知发生时间、运行状态、后果和调查边界。拍摄发现时状态，标记并隔离故障件、配合件、流体、过滤器、碎屑与相关样品。保存控制逻辑、告警、高分辨率趋势、工单、操作员记录、配置、校准、安装历史、环境条件和近期变更；记录时间戳、单位、时区、采集方法、来源和保管人。

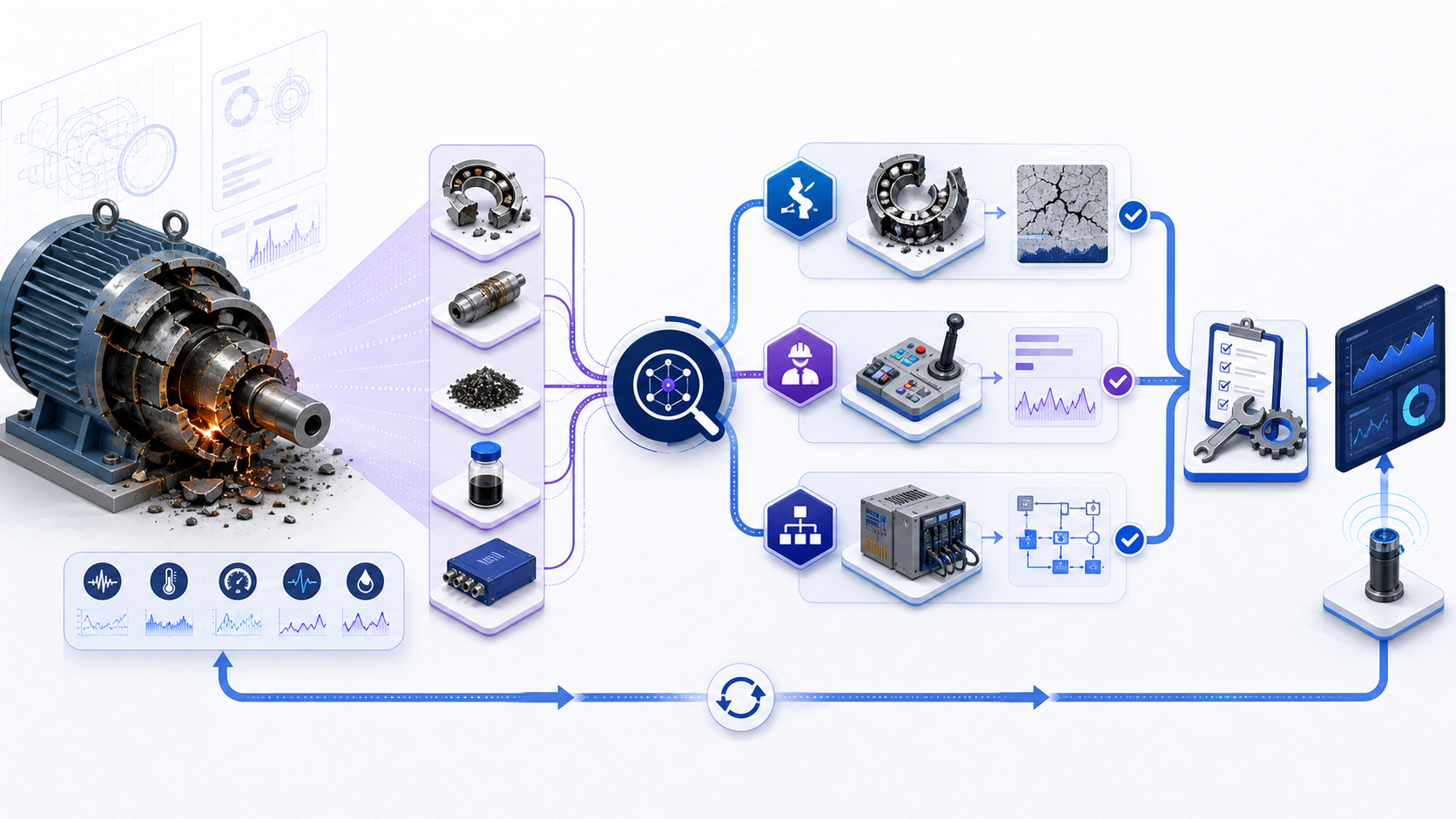

A step-by-step root cause failure analysis process根本原因故障分析的分步流程

1. Stabilize and preserve.稳定现场并保护证据。Make the condition safe, control access, record the as-found state, quarantine evidence, and document every change made during recovery.确保状态安全，控制访问，记录发现时状态，隔离证据，并记录恢复期间做出的每项变更。
2. Define the failure mode and scope.定义失效模式与范围。State the required function and observed loss without embedding a cause. Identify affected and unaffected assets, products, time windows, loads, and configurations.说明所需功能与观察到的功能丧失，不在描述中预设原因；识别受影响与未受影响的资产、产品、时间窗口、负载和配置。
3. Reconstruct the timeline.重建时间线。Align operating data, alarms, maintenance, changes, inspections, and witness accounts. Mark clock uncertainty, missing intervals, and evidence recorded after the event.对齐运行数据、告警、维护、变更、检查与见证记录，标注时钟不确定性、缺失区间和事后记录。
4. Characterize the failure mechanism.表征失效机制。Use appropriate visual, dimensional, electrical, chemical, materials, software, or process tests. Sequence tests from non-destructive to destructive and compare with known-good or unaffected samples.采用适当的目视、尺寸、电气、化学、材料、软件或流程测试；按无损到破坏性顺序执行，并与正常或未受影响样本比较。
5. Generate causes at several layers.生成多层候选原因。Ask what physical condition created the mechanism, what operating or human action contributed, and what latent design, maintenance, procurement, training, or detection control allowed it.追问什么物理条件制造了该机制、哪些运行或人为行为促成了它，以及哪些潜在设计、维护、采购、培训或检测控制允许它发生。
6. Test competing hypotheses.检验竞争假设。For each candidate, write predicted evidence and a falsification test. Use counterexamples, replication, simulation, controlled substitution, teardown, or additional measurement when safe and appropriate.为每个候选原因写出预测证据和可推翻它的测试；在安全且适当时使用反例、复现、仿真、受控替换、拆解或补充测量。
7. Select and map corrective actions.选择并映射纠正措施。Link every action to a verified mechanism, contributor, or failed barrier. Prefer controls that change design or process conditions over reminders that depend on perfect memory.把每项措施链接到已验证的机制、促成因素或失效屏障；优先选择改变设计或流程条件的控制，而非依赖完美记忆的提醒。
8. Verify, monitor, and close.验证、监测并结案。Define baseline, target, data source, observation window, side-effect checks, and reopening criteria. Confirm both implementation and effectiveness before closing the record.定义基线、目标、数据来源、观察窗口、副作用检查与重新开启标准；结案前同时确认措施已实施且有效。

Separate failure mode, mechanism, and cause layers区分失效模式、机制与原因层级

Do not force one label to carry the whole explanation. A broken bearing is evidence of a failure mode; fatigue may be the mechanism; misalignment may be a physical cause; an installation method may be a contributor; and an absent alignment acceptance test may be the latent control failure. The full chain makes corrective action reviewable.

不要强迫一个标签解释整条因果链。轴承损坏是失效模式的证据；疲劳可能是机制；错位可能是物理原因；安装方法可能是促因；缺少对中验收测试可能是潜在控制失效。完整链条使纠正措施可以被复核。

Root cause failure analysis example: repeated bearing damage根本原因故障分析示例：轴承重复损坏

Hypothetical example: a process pump trips on high vibration six weeks after a bearing replacement. The team does not assume “bad bearing.” It quarantines the bearing and lubricant, photographs the assembly, exports vibration and temperature history, collects alignment readings, reviews the work order, and compares the failed pump with a matched unaffected unit.

假设示例：某工艺泵在更换轴承六周后因高振动跳停。团队没有直接认定“轴承质量差”，而是隔离轴承与润滑剂、拍摄装配状态、导出振动和温度历史、采集对中读数、复核工单，并与条件匹配的正常泵比较。

Examination finds one-sided raceway loading and wear consistent with misalignment; lubricant chemistry and bearing dimensions remain within their specified checks. The alignment record shows an acceptable reading immediately after installation, but the test was taken before connected piping returned to operating temperature. A controlled hot-alignment check reproduces an offset on the failed pump, while the unaffected unit remains within the organization’s approved limit. This supports a physical cause—thermally induced misalignment—rather than contamination or a defective replacement part.

检查发现滚道单侧受载和与错位一致的磨损；润滑剂化学状态与轴承尺寸在规定检查范围内。对中记录显示安装后读数合格，但测量发生在连接管道恢复运行温度之前。受控热态对中检查在故障泵上复现偏移，而正常泵仍在组织批准限值内。这支持“热致错位”这一物理原因，而非污染或替换件缺陷。

The deeper review finds that the work instruction requires cold alignment only, the acceptance form has no field for thermal growth assumptions, and no post-start vibration review is assigned. The team records these as latent system causes. Corrective actions revise the engineering requirement, add a hot-condition verification where technically appropriate, and assign post-start monitoring. Effectiveness is judged over an approved operating window using alignment, vibration trend, temperature, and recurrence—not merely by closing the work order. All values in this example are illustrative; real limits must come from the asset design and approved engineering procedure.

进一步复核发现，作业指导书只要求冷态对中，验收表没有热膨胀假设字段，也没有分配启动后振动复核。团队把这些记录为潜在系统原因。纠正措施包括修订工程要求、在技术上适当时增加热态验证，并指定启动后监测。措施效果应在批准的运行窗口内用对中、振动趋势、温度与复发情况判断，而不是以工单关闭作为成功证明。示例中的所有数值均为说明性质；实际限值必须来自资产设计与批准的工程程序。

What a root cause failure analysis engagement delivers一次根本原因故障分析委托应交付什么

A search for proconex root cause failure analysis services leads to Proconex Direct’s rotating-equipment RCFA offer, including their published phone contact. This page is the investigation method, not that service. Whoever performs the work, the record still has to name the failed function, the preserved evidence, the mechanism and the test that supports it, the alternatives that were rejected, the corrective action tied to a cause layer, and the owner and window used to judge whether recurrence changed.

搜索 proconex root cause failure analysis services 会进入 Proconex Direct 自己的旋转设备根本原因故障分析服务，页面上有他们公布的电话。本页讲的是调查方法，不是那项服务。无论谁来做，记录都要写明失效功能、已保护的证据、机制及支持它的测试、被排除的其他解释、对应到某一原因层级的纠正措施，以及用来判断复发是否改变的负责人和观察窗口。

Collect rotating-equipment evidence before the teardown拆解前先收集旋转设备证据

Pumps, compressors, fans, and gearboxes lose the as-found story as soon as the coupling is opened. Record the items below before cleaning or parts replacement. Each row is a lead. None of them, alone, names the mechanism.

泵、压缩机、风机和齿轮箱一旦打开联轴器，发现时的状态就容易消失。清洗或更换零件前先记录下表。每一行都只是线索，单独一行都不能命名失效机制。

Send the part to a laboratory when the desk review stops案头复核停住时，把零件送进实验室

Trend review can time the event and reject some operating stories. It cannot identify a fracture mode, a corrosion product, or a material that does not match the specification. Send the preserved part for fractography, metallography, or chemical analysis when the mechanism depends on those results, and whenever the event is safety-critical or may be used in a legal or regulatory record. NASA’s failure-analysis briefing treats the failed part and the non-destructive sequence as the start of the investigation, not as an optional lab add-on. A laboratory report still has to be read against the timeline. A mechanism with no path back to operation, maintenance, or design is an incomplete RCFA.

趋势复核可以给事件定时，并排除一部分运行故事。它不能识别断裂模式、腐蚀产物，或与规范不符的材料。当机制取决于这些结果时，以及事件涉及安全关键、或可能进入法律或监管记录时，把已保护的零件送去做断口、金相或化学分析。 NASA 的失效分析说明 把故障件和无损检查顺序当作调查的起点，而不是可选的实验室附加项。实验室报告仍要对照时间线阅读。一个无法连回运行、维护或设计的机制，还不是完整的 RCFA。

Manufacturing example: a line stop is not the mechanism制造示例：停线不是失效机制

Hypothetical example: a packaging line stops twice in one shift after a changeover. The first note says “sensor fault.” The as-found photo shows cartons sitting against a guard that was repositioned during the changeover. The sensor log shows a blocked-beam alarm only after the carton position changed. A matched line that kept the previous guard setting does not alarm. The mechanism is mechanical interference, not a failed sensor. The latent cause is a changeover sheet with no field for the guard datum. The corrective action updates that sheet and checks the datum before release. These details are illustrative. Plant limits and sensor logic have to come from the approved line standard.

假设示例：一条包装线在换型后的一个班次里停了两次。第一条记录写的是“传感器故障”。发现时照片显示纸箱顶在换型时被挪过的防护罩上。传感器日志里的遮光报警出现在纸箱位置改变之后。保持原防护罩设定的对照产线没有报警。机制是机械干涉，不是传感器损坏。潜在原因是换型单没有防护罩基准字段。纠正措施是补上该字段，并在放行前核对基准。这些细节是说明性的。现场限值和传感器逻辑必须来自批准的产线标准。

Add condition monitoring only after the mechanism is verified机制确认之后，再把状态监测加进维护计划

A new vibration point, oil sample, or sensor alarm belongs on the maintenance plan when it watches the verified mechanism or a named barrier. Adding an alarm because the last failure was expensive watches a symptom. In the pump example, hot-alignment and a post-start vibration review follow from thermally induced misalignment. A generic “replace the bearing sooner” task does not. Reopen the monitoring point if the failure returns with a different signature.

新的振动测点、油液样品或传感器报警，只有在监视已验证的机制或一道写明的屏障时，才放进维护计划。因为上次故障很贵就加一个报警，监视的是症状。在泵的例子里，热态对中和启动后振动复核来自热致错位；笼统的“更早更换轴承”并不是。如果故障以另一种特征回来，应重开这个监测点。

Failure analysis vs root cause analysis vs FMEA失效分析、根因分析与 FMEA 的区别

Failure analysis concentrates on the failed item or function: location, mode, mechanism, and technical evidence. Root cause analysis extends beyond the item to operating context, design decisions, maintenance, human factors, and prevention or detection controls. RCFA deliberately joins both views. Failure mode and effects analysis (FMEA) is normally prospective: it asks how a design or process could fail and prioritizes risk before an event. RCFA is retrospective: it investigates a failure that actually occurred.

失效分析集中于故障对象或功能：失效位置、模式、机制与技术证据。根因分析从对象向外扩展到运行环境、设计决策、维护、人因以及预防或检测控制。RCFA 有意连接两种视角。失效模式与影响分析（FMEA）通常是前瞻性的：在事件前询问设计或流程可能如何失效并确定风险优先级；RCFA 是回顾性的：调查已经实际发生的故障。

The methods complement one another. Verified RCFA findings can update an FMEA’s failure modes, controls, occurrence assumptions, or detection assumptions. An existing FMEA can suggest hypotheses during RCFA, but its risk score is not proof that a particular mechanism caused the observed event. A 5 Whys chain and a fishbone diagram list candidates. They do not establish a materials or process mechanism. Use them inside root cause analysis methods techniques, then keep the RCFA evidence tests in front of any corrective action.

这些方法可以互补。经验证的 RCFA 结论可更新 FMEA 的失效模式、控制、发生度假设或探测度假设；已有 FMEA 也可为 RCFA 提供候选假设，但风险评分不能证明某个具体机制导致了本次事件。 五问法和鱼骨图用来列出候选原因，不能确立材料或流程机制。把它们放在根因分析方法与技术里使用，纠正措施之前仍要先完成 RCFA 的证据检验。

Verify causes and avoid common RCFA failures验证原因并避免常见 RCFA 失误

A credible cause explains the failure’s location, timing, scope, and mechanism; predicts observations in affected and unaffected cases; fits evidence better than alternatives; and survives a deliberate attempt to disprove it. Where safe, controlling the cause should change a measurable outcome. If direct intervention is impossible, use converging evidence and state the remaining uncertainty.

可信原因应解释故障的位置、时间、范围和机制；预测受影响与未受影响案例中的观察结果；比替代解释更符合证据；并经受主动反证。若安全可行，控制该原因应改变可测结果；若无法直接干预，应使用相互印证的证据并说明剩余不确定性。

• Do not repair before preserving evidence. Recovery can erase fracture surfaces, timestamps, configuration, contamination, and as-found geometry.不要在保护证据前维修。恢复操作可能抹去断口、时间戳、配置、污染和发现时几何状态。
• Do not stop at “operator error” or “component failed.” Ask what conditions made the action likely and what barrier should have prevented or detected it.不要停在“操作员错误”或“部件坏了”。应追问什么条件使行为更可能发生，以及什么屏障本应预防或发现它。
• Do not confuse correlation with mechanism. A trend that moves with the failure is a lead until timing, pathway, and counterevidence are tested.不要把相关性当作机制。与故障同步变化的趋势只是线索，必须检验时间顺序、作用路径和反证。
• Do not verify only implementation. “Training delivered” or “part replaced” confirms activity, not that risk or recurrence changed.不要只验证实施。“培训已完成”或“部件已更换”只能证明活动发生，不能证明风险或复发已改变。
• Do not close a finding that has no custodian. A conclusion with no record location, owner, and review date is repeated the next time the same asset fails.不要关闭一份没有保管人的结论。没有存放位置、负责人和复查日期的结论，同一资产下次失效时会被重新调查一遍。

Keep an evidence register, hypothesis table, test record, decision log, action-to-cause map, and effectiveness plan. Reopen the investigation when recurrence, contradictory evidence, a new mechanism, or an unacceptable side effect challenges the accepted explanation. For adjacent product workflows, review the InfiniSynapse tool catalog and product documentation.

保留证据登记表、假设表、测试记录、决策日志、措施—原因映射与效果验证计划。当复发、矛盾证据、新机制或不可接受的副作用挑战既有解释时，应重新开启调查。相关产品工作流可查看 InfiniSynapse 工具目录和产品文档。

Frequently asked questions about root cause failure analysis根本原因故障分析常见问题

Official sources and verification notes官方来源与验证说明

• NASA NEPP’s Basics of Failure Analysis
• IFAC step-by-step RCA guide

• NASA NEPP《失效分析基础》
• IFAC 分步 RCA 指南

These sources support the distinction between physical failure analysis and broader root cause analysis, plus the evidence-led investigation sequence used here. The comparison table and bearing example are editorial synthesis. Technical limits, standards, and organizational requirements vary; verify current approved documentation before consequential use.

这些来源支持物理失效分析与更广义根因分析之间的区别，以及本文采用的证据导向调查顺序。比较表和轴承案例为编辑整理。技术限值、标准和组织要求各不相同；在重要用途前请核对当前批准的文档。
