Unstructured Data Extraction: Workflow & Tool Guide

What Is Unstructured Data Extraction?什么是非结构化数据提取？

Place this specific workflow in context with the unstructured data processing and document intelligence guide, which connects the definitions, alternatives, validation steps, and related implementation guides.

可通过非结构化数据处理与文档智能指南理解本专题在整体流程中的位置；该指南串联了定义、替代方案、验证步骤与相关实施文章。

Unstructured data extraction is the controlled conversion of relevant content into a declared schema of fields, entities, relationships or tables. The input may be a digital document, scan, message, image, recording or video; the usable output includes types, normalized values, source evidence, validation status and explicit unknowns—not merely a block of generated text.

非结构化数据提取是把相关内容受控转换为已声明模式中的字段、实体、关系或表格。输入可以是数字文档、扫描件、消息、图像、录音或视频；可用输出应包含类型、规范值、来源证据、验证状态与明确未知项，而不只是一段生成文本。

Organizations search for this capability when manual keying cannot keep up, when reports must feed a database, when contract clauses need comparison, when support conversations need structured facts, or when approved content must become analyzable context. Extraction succeeds only when the result is fit for a stated decision. A readable transcript can still be the wrong deliverable if the task requires a date, party, unit, relationship and exact evidence location.

当人工录入无法跟上、报告需要进入数据库、合同条款需要比较、支持对话需要结构化事实，或获批内容需要成为可分析语境时，组织会寻找这种能力。只有结果适合已声明决策，提取才算成功。如果任务需要日期、主体、单位、关系和精确证据位置，一份可读转录仍可能是错误交付物。

Quick answer: define the record and field rules first; prepare a rights-approved representative corpus; parse, OCR or transcribe by modality; segment while preserving coordinates; extract each field with the simplest adequate method; normalize values; validate schema and business constraints; review uncertainty; then monitor field quality and source drift.

快速回答：先定义记录与字段规则；准备权利获批且有代表性的语料；按模态解析、OCR或转录；在保留坐标的情况下分段；为每个字段选择足够且最简单的方法；规范值；验证模式与业务约束；复核不确定结果；最后监控字段质量与来源漂移。

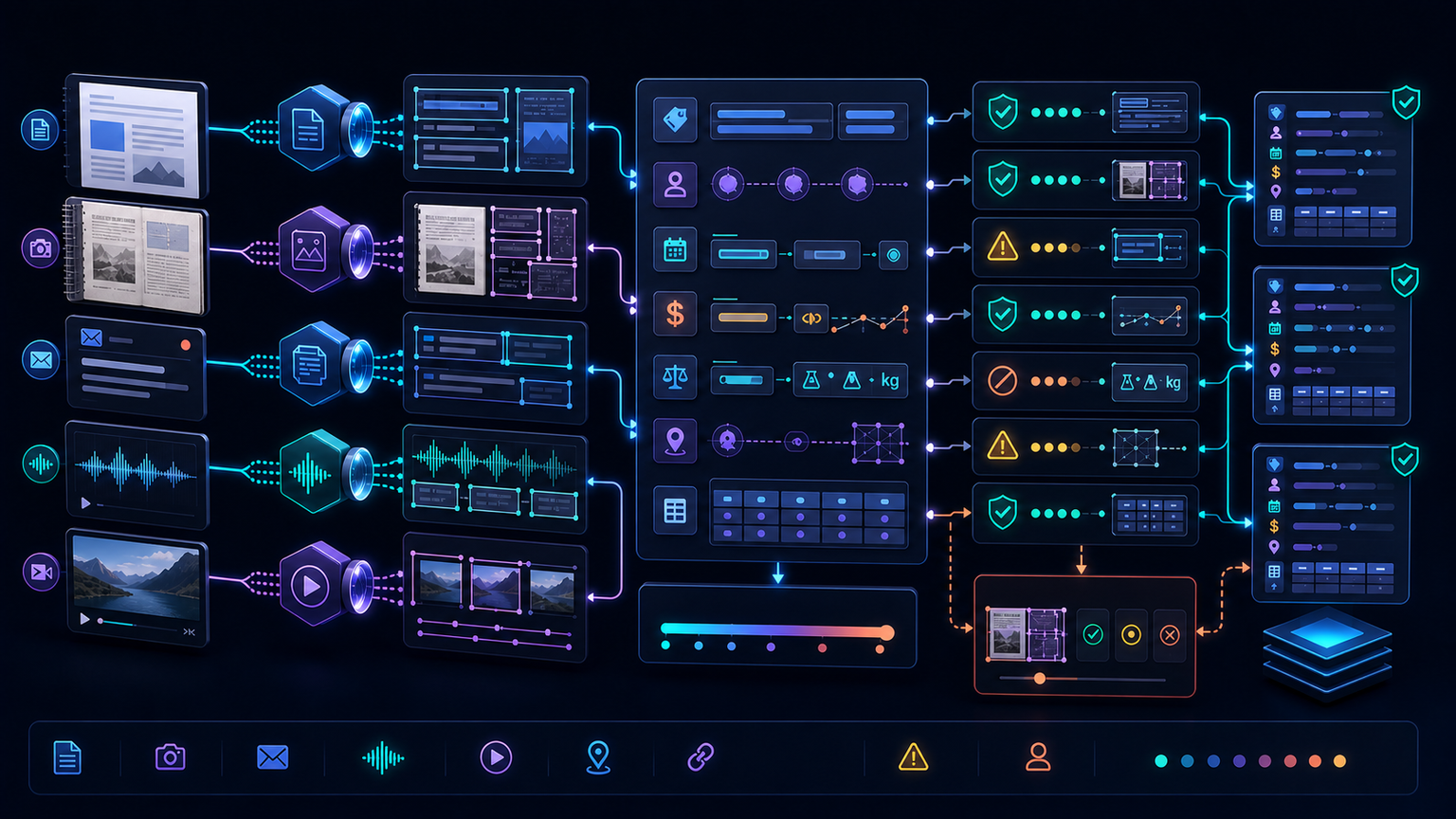

A Repeatable Unstructured Data Extraction Workflow可重复执行的非结构化数据提取工作流

1. Bind the source version.1. 绑定来源版本。Assign a stable source ID and capture repository, path, version or checksum, access context, MIME detection, size and timestamps. Do not let a later edit silently change the evidence behind an extracted record.分配稳定来源ID，记录存储库、路径、版本或校验值、访问语境、MIME检测、大小与时间戳。不要让后续编辑悄然改变提取记录背后的证据。
2. Route by actual modality.2. 按真实模态路由。Detect container and embedded content rather than trusting extensions. Route digital text, scans, tables, handwriting, email attachments, audio and video to appropriate parsers, OCR, speech recognition or visual analysis.检测容器与嵌入内容，而不是相信扩展名。把数字文本、扫描件、表格、手写内容、邮件附件、音频与视频路由到合适的解析、OCR、语音识别或视觉分析组件。
3. Preserve layout and coordinates.3. 保留布局与坐标。Keep page, bounding box, table cell, paragraph, speaker and timestamp references. Flattening everything into plain text may destroy the relationships needed to interpret headers, columns, signatures or who said what.保留页码、边界框、表格单元、段落、说话人和时间戳引用。把一切扁平化成纯文本可能破坏理解表头、列、签名或说话人所需的关系。
4. Segment into extraction units.4. 切分提取单位。Split by the defined record boundary, not an arbitrary token count. Retain parent-child links for document, section, page, attachment, message thread, speaker turn or scene.按已定义记录边界切分，而不是任意令牌数量。保留文档、章节、页面、附件、消息线程、说话轮次或场景的父子关系。
5. Extract with a field-appropriate method.5. 按字段选择方法。Use deterministic rules for stable patterns, trained models for recurring variation, constrained language or multimodal models for semantic variation, and hybrids when fields fail differently. Permit abstention.稳定模式使用确定性规则，反复变化使用训练模型，语义变化使用受约束语言或多模态模型；字段失败模式不同时采用混合方法，并允许弃答。
6. Normalize without erasing the raw value.6. 规范值但不抹去原值。Standardize dates, currencies, units, identifiers and entity names while preserving the original string and transformation rule. Locale and timezone assumptions must be explicit.规范日期、货币、单位、标识符与实体名称，同时保留原始字符串与转换规则。地区与时区假设必须明确。
7. Validate structure and meaning.7. 验证结构与含义。Check syntax, types, required fields, ranges, controlled vocabularies, cross-field consistency, referential integrity and domain rules. A schema-valid object can still be semantically wrong.检查语法、类型、必填字段、范围、受控词表、跨字段一致性、引用完整性与领域规则。通过模式验证的对象仍可能语义错误。
8. Reconcile evidence.8. 对账证据。Every accepted field should point to a source span, cell, region or time range where feasible. Record extractor and model versions, prompt or rule IDs, processing time and any transformations.在可行时，每个获接受字段都应指向来源文本片段、单元格、区域或时间范围。记录提取器与模型版本、提示或规则ID、处理时间及转换。
9. Route risk-based review.9. 按风险路由复核。Send missing required fields, rule conflicts, low calibrated confidence, model disagreement and high-impact values to reviewers with the original evidence visible. Record corrections rather than overwriting history.把缺失必填字段、规则冲突、低校准置信度、模型分歧与高影响值送交复核，并显示原始证据。记录修正，而不是覆盖历史。
10. Publish and monitor a versioned record.10. 发布并监控版本化记录。Export only accepted records with status and provenance. Monitor source, layout, language, parser and model drift; invalidate affected derivatives; and reprocess from preserved source versions.只导出带状态与来源追溯的已接受记录。监控来源、布局、语言、解析器与模型漂移，使受影响派生物失效，并从保留的来源版本重新处理。

How to Validate Unstructured Data Extraction如何验证非结构化数据提取

Validation must compare candidate records with reviewed ground truth that was not used to tune the extractor. Compute metrics per field and slice, not only per document or as a single “accuracy” percentage. A system can score highly overall while consistently missing a rare governing-law clause, a particular language or low-resolution scans.

验证必须把候选记录与未用于调优提取器的已复核真值比较。应按字段和切片计算指标，而不只按文档或一个“准确率”百分比。系统可能总体得分很高，却持续漏掉罕见管辖法律条款、某种语言或低分辨率扫描件。

Schema-validSyntax and declared types pass语法与声明类型通过

CompleteRequired fields are present or explicitly unknown必填字段存在或明确未知

P / R / F1Field correctness and coverage字段正确性与覆盖

TraceableAccepted values retain valid evidence已接受值保留有效证据

Exact and normalized match: evaluate raw strings where exactness matters and canonical values where formatting differences are acceptable.精确与规范化匹配：精确性重要时评估原始字符串，格式差异可接受时评估规范值。
Precision, recall and F1: calculate per field and for relationships, not just detected documents. Define how partial spans and multiple values score.精确率、召回率与F1：按字段与关系计算，而不只统计检测到的文档。定义部分文本片段和多值如何评分。
Constraint failures: count type, range, vocabulary, referential and cross-field violations separately.约束失败：分别统计类型、范围、词表、引用与跨字段违规。
Evidence coverage: verify that coordinates reopen the correct source version and visibly support the accepted value.证据覆盖：验证坐标能重新打开正确来源版本，并直观支持已接受值。
Operational measures: record abstention, review rate, reviewer agreement, queue age, latency, throughput, cost and reprocessing success.运营指标：记录弃答、复核率、复核者一致性、队列时长、延迟、吞吐、成本与重处理成功率。

Confidence is useful only after calibration on the relevant field and population. Plot error rate by confidence band and test whether the review threshold actually contains severe errors. A high score without a defined population, calibration method and evidence is an interface value, not a quality guarantee.

只有在相关字段与数据总体上完成校准后，置信度才有用。应按置信度区间绘制错误率，并测试复核阈值是否真的拦截严重错误。没有定义总体、校准方法与证据的高分只是界面数值，不是质量保证。

Use InfiniSynapse After Extraction and Review在提取与复核后使用InfiniSynapse

Prepare supported, rights-approved inputs and any structured fields that have passed schema, quality and provenance checks. Retain source identifiers and evidence coordinates, remove prohibited content and resolve material review exceptions. InfiniSynapse's public site describes analysis across multiple data sources and multimodal content including documents, audio and video. That makes it relevant for downstream exploration and comparison—not a replacement for parsing, OCR, transcription, schema-specific extraction or human validation.

准备受支持、权利获批且已通过模式、质量与来源追溯检查的输入和结构化字段。保留来源标识与证据坐标，移除禁止内容，并解决重要复核异常。InfiniSynapse官网描述了跨多个数据源以及文档、音频与视频等多模态内容的分析能力。因此，它适合下游探索与比较，而不能替代解析、OCR、转录、特定模式提取或人工验证。

Analyze reviewed content and verified fields分析已复核内容与已验证字段

Before opening the tool, confirm that content is authorized and supported, required fields are accepted or explicitly unknown, evidence links work, and high-impact exceptions are resolved. Use InfiniSynapse to analyze the approved content across sources and modalities. Keep extraction contracts, OCR, parsing, validation, review and lifecycle enforcement in the responsible systems.

打开工具前，确认内容已授权且受支持，必填字段已接受或明确未知，证据链接有效，高影响异常已解决。使用InfiniSynapse跨来源与模态分析获批内容；提取契约、OCR、解析、验证、复核与生命周期执行仍应保留在负责系统中。

Analyze approved data with InfiniSynapse使用InfiniSynapse分析获批数据

Review the public InfiniSynapse capability description and verify current source, format, deployment and control support for the intended workload before use.

使用前请查看InfiniSynapse公开能力说明，并针对预期工作负载验证当前来源、格式、部署与控制支持。

Unstructured Data Extraction FAQ非结构化数据提取常见问题

What is unstructured data extraction?

什么是非结构化数据提取？

Unstructured data extraction is a controlled workflow that converts relevant content from documents, messages, images, audio and video into explicitly typed fields, entities, relationships or tables. A defensible result also preserves source identity and coordinates, validates the output schema, records uncertainty and routes material exceptions for review.

非结构化数据提取是一项受控工作流，把文档、消息、图像、音频和视频中的相关内容转换成类型明确的字段、实体、关系或表格。可辩护的结果还应保留来源身份与坐标，验证输出模式，记录不确定性，并把重要异常送交复核。

How is data extraction different from OCR?

数据提取与OCR有什么区别？

OCR converts pixels that depict characters into machine-readable text and often reports positions or confidence. Data extraction determines which business values, entities or relationships the content represents, normalizes them into a defined schema and validates the result. OCR can be one preprocessing stage, but readable text alone is not a verified business record.

OCR把描绘字符的像素转换成机器可读文本，通常还报告位置或置信度。数据提取需要判断内容代表哪些业务值、实体或关系，把它们规范到已定义模式并验证结果。OCR可以是预处理阶段之一，但可读文本本身不是已验证业务记录。

How do you extract structured data from unstructured text?

如何从非结构化文本中提取结构化数据？

Define a versioned schema and annotation rules, preserve representative source examples, parse or transcribe content, segment it without losing coordinates, apply rules, trained models or a constrained language model, normalize values, validate types and cross-field rules, review uncertain or high-impact records, and measure field quality on held-out labeled data.

先定义版本化模式与标注规则，保留有代表性的来源样本；解析或转录内容，在不丢失坐标的情况下分段；应用规则、训练模型或受约束语言模型；规范值，验证类型与跨字段规则；复核不确定或高影响记录；最后在独立标注数据上衡量字段质量。

Which method should I use for unstructured document data extraction?

非结构化文档数据提取应选择哪种方法？

Use deterministic parsers, templates or regular expressions for stable layouts and unambiguous patterns; trained entity or layout models for recurring domain variation; constrained language or multimodal models for semantically varied fields; and a hybrid when different fields have different failure modes. Test every choice on representative difficult cases rather than selecting one method for an entire document.

稳定布局和明确模式适合确定性解析器、模板或正则表达式；反复出现的领域变化适合训练过的实体或布局模型；语义变化大的字段可考虑受约束语言或多模态模型；不同字段存在不同失败模式时采用混合方法。应在有代表性的困难案例上测试，而不是为整份文档只选一种方法。

How should unstructured data extraction quality be measured?

如何衡量非结构化数据提取质量？

Measure schema-valid rate, required-field completeness, exact or normalized match, and field-level precision, recall and F1. Slice results by source, format, layout, language and difficulty. Also track evidence-coordinate coverage, abstention or review rate, latency, cost and the severity of errors because one aggregate accuracy number can hide material failures.

衡量模式有效率、必填字段完整率、精确匹配或规范化匹配，以及字段级精确率、召回率和F1。按来源、格式、布局、语言与难度切片；同时跟踪证据坐标覆盖、弃答或复核率、延迟、成本和错误严重性，因为单一总体准确率会掩盖重要失败。

Should extraction systems return confidence scores?

提取系统是否应返回置信度？

Confidence can help route review only if it is calibrated for the actual field and workload. A vendor score is not proof of correctness. Combine confidence with validation rules, evidence coordinates, disagreement checks, risk tiers and sampled human review; preserve an explicit unknown or abstain state instead of forcing every field to a value.

只有在置信度针对实际字段和工作负载完成校准时，它才适合辅助复核路由。厂商分数不是正确性证明。应结合验证规则、证据坐标、差异检查、风险分层与抽样人工复核，并保留明确的未知或弃答状态，不要强迫每个字段都产生值。

What should an unstructured data extraction tool pilot include?

非结构化数据提取工具试点应包含什么？

Use a frozen, rights-approved corpus with normal, difficult, corrupted, encrypted, multilingual and prohibited cases. Define field-level acceptance thresholds before testing, compare outputs against reviewed ground truth, inspect source coordinates and failure reasons, test reprocessing and deletion, and record deployment, security, throughput, latency and workload-unit cost.

使用冻结版本且权利获批的语料，覆盖正常、困难、损坏、加密、多语言和禁止案例。测试前定义字段级阈值，把输出与已复核真值比较，检查来源坐标与失败原因，测试重处理和删除，并记录部署、安全、吞吐、延迟与工作负载单位成本。

Can InfiniSynapse replace an OCR or data extraction platform?

InfiniSynapse能否替代OCR或数据提取平台？

No. InfiniSynapse is publicly described as a multi-source, multimodal analysis tool across databases, documents, audio and video. It can analyze approved inputs after extraction and quality controls are complete, but it does not replace format parsing, OCR, transcription, schema-specific field extraction, provenance capture, validation or human review.

不能。InfiniSynapse公开定位是跨数据库、文档、音频与视频的多源多模态分析工具。它可在提取与质量控制完成后分析获批输入，但不能替代格式解析、OCR、转录、特定模式字段提取、来源追溯、验证或人工复核。

Official and First-Party Sources官方与第一方来源

NIST supplies terminology; Apache, JSON Schema, W3C, AWS and spaCy document specific standards, frameworks or services. Product behavior, supported formats and limits can change, so verify the deployed version and intended workload. The workflow, scorecard and hypothetical contract example in this guide are decision frameworks, not universal requirements, performance claims or customer results.

NIST提供术语；Apache、JSON Schema、W3C、AWS与spaCy记录特定标准、框架或服务。产品行为、支持格式与限制可能变化，因此应验证部署版本与预期工作负载。本指南的工作流、评分卡与假设合同示例属于决策框架，不是通用要求、性能声明或客户结果。
